Glenair MWDM2L-25USP1,MWDM2L-37USP1 Micro-D連接器

發布時間：2025-06-26 09:29:44 瀏覽：60

　　Glenair 的 Sav-Con? Micro-D 連接器保護器(型號 MWDM2L)專為保護昂貴設備而設計，采用 TwistPin 接觸技術 和一體式鋁合金外殼，可有效減少插拔磨損，適用于測試設備、航天級儀器等精密應用場景。

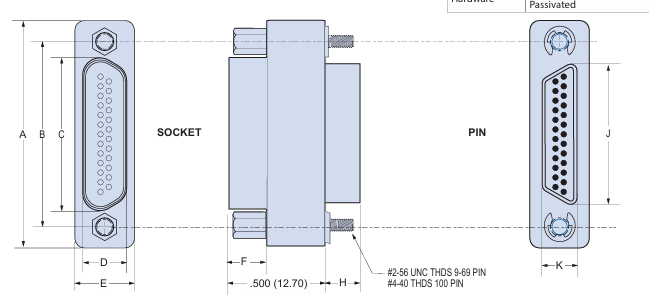

　　型號尺寸：

Size	Part Number	A Max.		B		C Max.		D Max.		E Max.		F		H		JMax.		K Max
Size	Part Number	In.	mm.	In. ±.003	mm. ±0.08	In.	mm.	In.	mm.	In.	mm.	In. ±.003	mm. ±0.08	In. ±.003	mm ±.08	In.	mm.	In.	mm.
9	MWDM2L-9USP1	785	19.94	.565	14.35	.400	10.16	.250	6.35	308	7.82	.195	4.95	.183	4.65	333	8.46	.184	4.67
15	MWDM2L-15USP1	.935	23.75	.715	18.16	.551	14.00	.250	6.35	308	7.82	.195	4.95	.183	4.65	483	12.27	.184	4.67
21	MWDM2L-21USP1	1.085	27.56	.865	21.97	.701	17.81	.250	6.35	308	7.82	.195	4.95	.183	4.65	633	16.08	.184	4.67
25	MWDM2L-25USP1	1.185	30.01	.965	24.51	801	20.35	.250	6.35	.308	7.82	.195	4.95	.183	4.65	.733	18.62	.184	4.67
31	MWDM2L-31USP1	1.335	33.91	1.115	28.32	.951	24.16	.250	6.35	308	7.82	195	4.95	.183	4.65	.883	22.43	.184	4.67
37	MWDM2L-37USP1	1.485	37.72	1.265	32.13	1.101	27.96	.250	6.35	.308	7.82	.195	4.95	.183	4.65	1.033	26.24	.184	4.67
51	MWDM2L-51USP1	1.435	36.45	1.215	30.86	1.051	26.70	.296	7.52	351	8.92	.195	4.95	.183	4.65	.983	24.97	.228	5.79
51-2	MWDM2L-51-2USP1	1.835	46.61	1.615	41.02	1.450	36.83	.250	6.35	.308	7.82	.195	4.95	.183	4.65	1.384	35.15	.184	4.67
67	MWDM2L-67USP1	2.235	56.77	2.015	51.18	1.850	46.99	.250	6.35	308	7.82	.195	4.95	.183	4.65	1.784	45.31	.184	4.67
69	MWDM2L-69USP1	1.735	44.07	1.515	38.48	1.350	34.29	.296	7.52	.351	8.92	.195	4.95	.183	4.65	1.284	32.61	.228	5.79
75	MWDM2L-75USP1	2.080	52.80	1.705	43.30	1.450	36.80	.296	7.52	.351	8.92	.195	4.95	.183	4.65	1.384	35.20	.228	5.79
100	MWDM2L-100USP1	2.170	55.12	1.800	45.72	1.451	36.86	333	8.46	.394	10.01	.195	4.95	.183	4.65	1.383	35.13	.270	6.86
130	MWDM2L-130USP1	2.520	64.00	2.160	54.86	1.795	45.60	.333	8.46	394	10.01	195	4.95	.183	4.65	1.735	44.07	.270	6.86
